2001 84' Northcoast

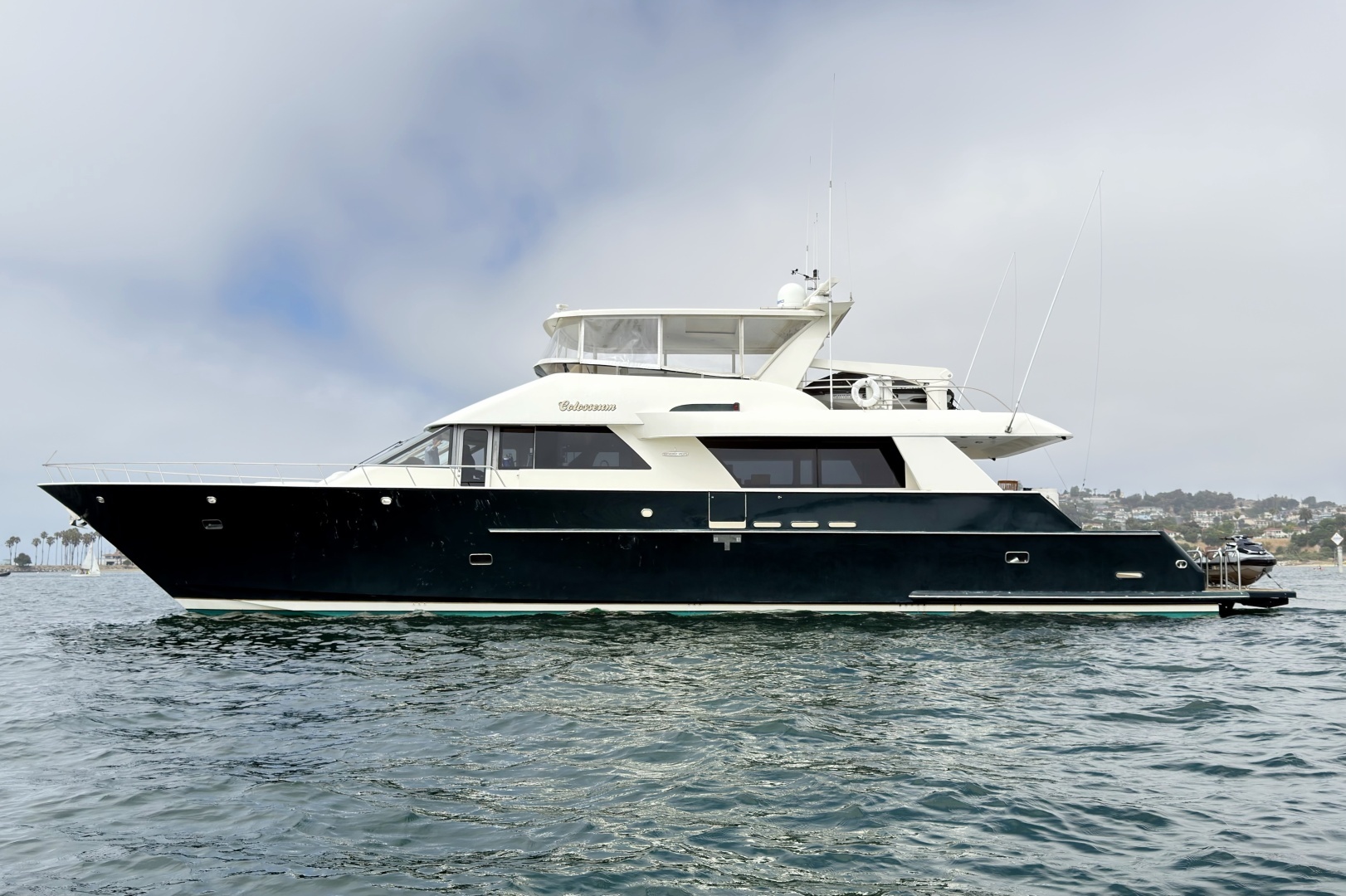

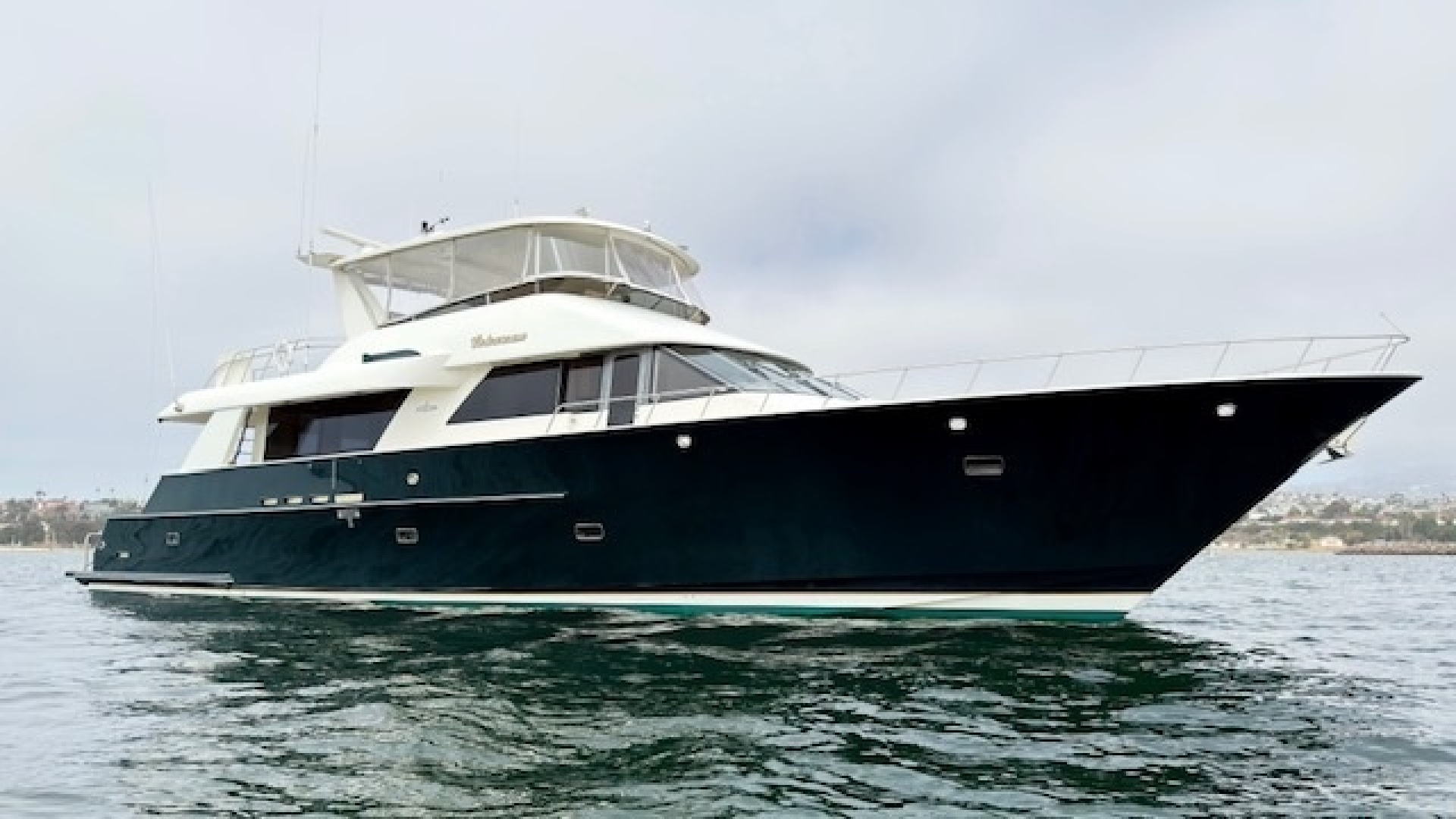

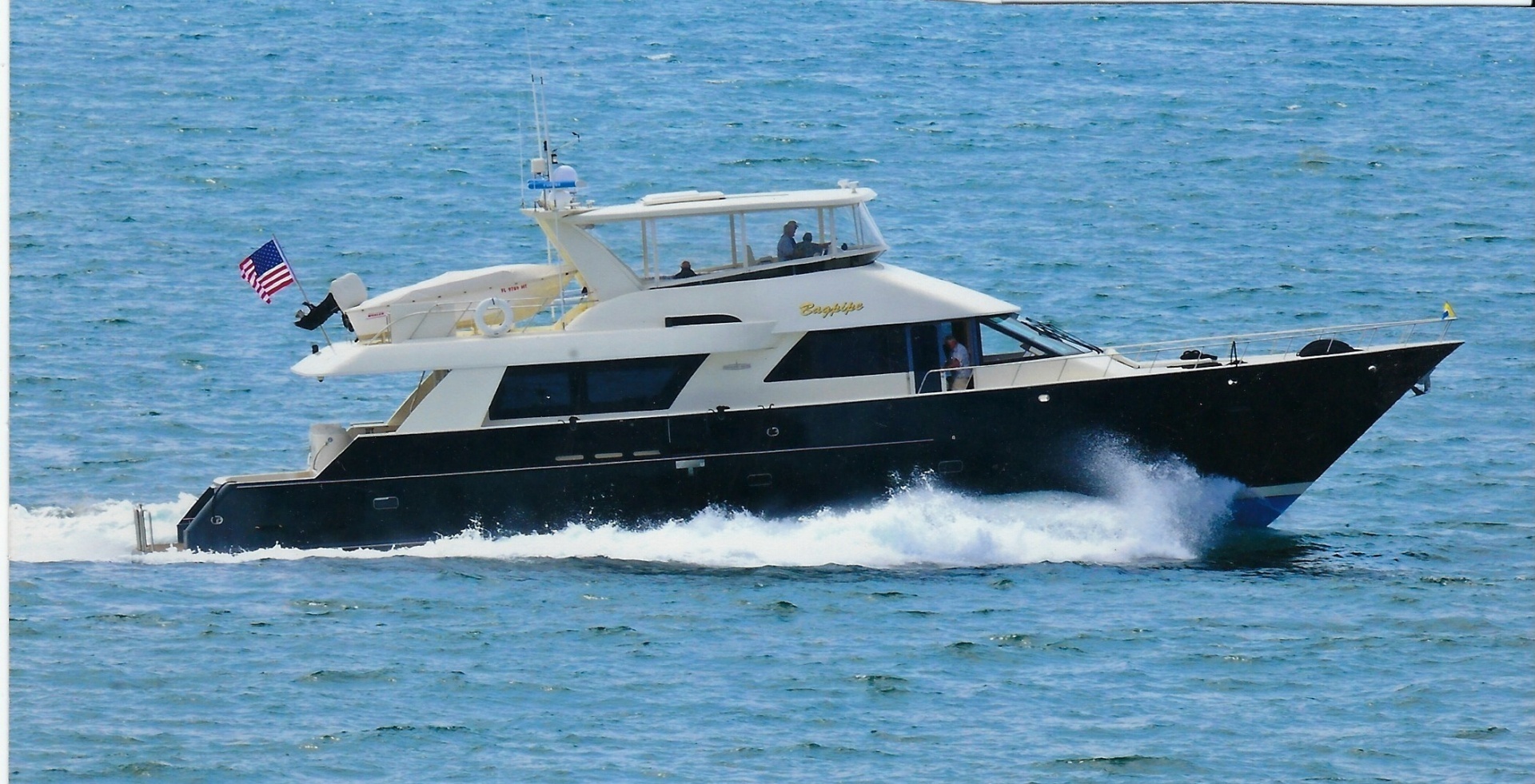

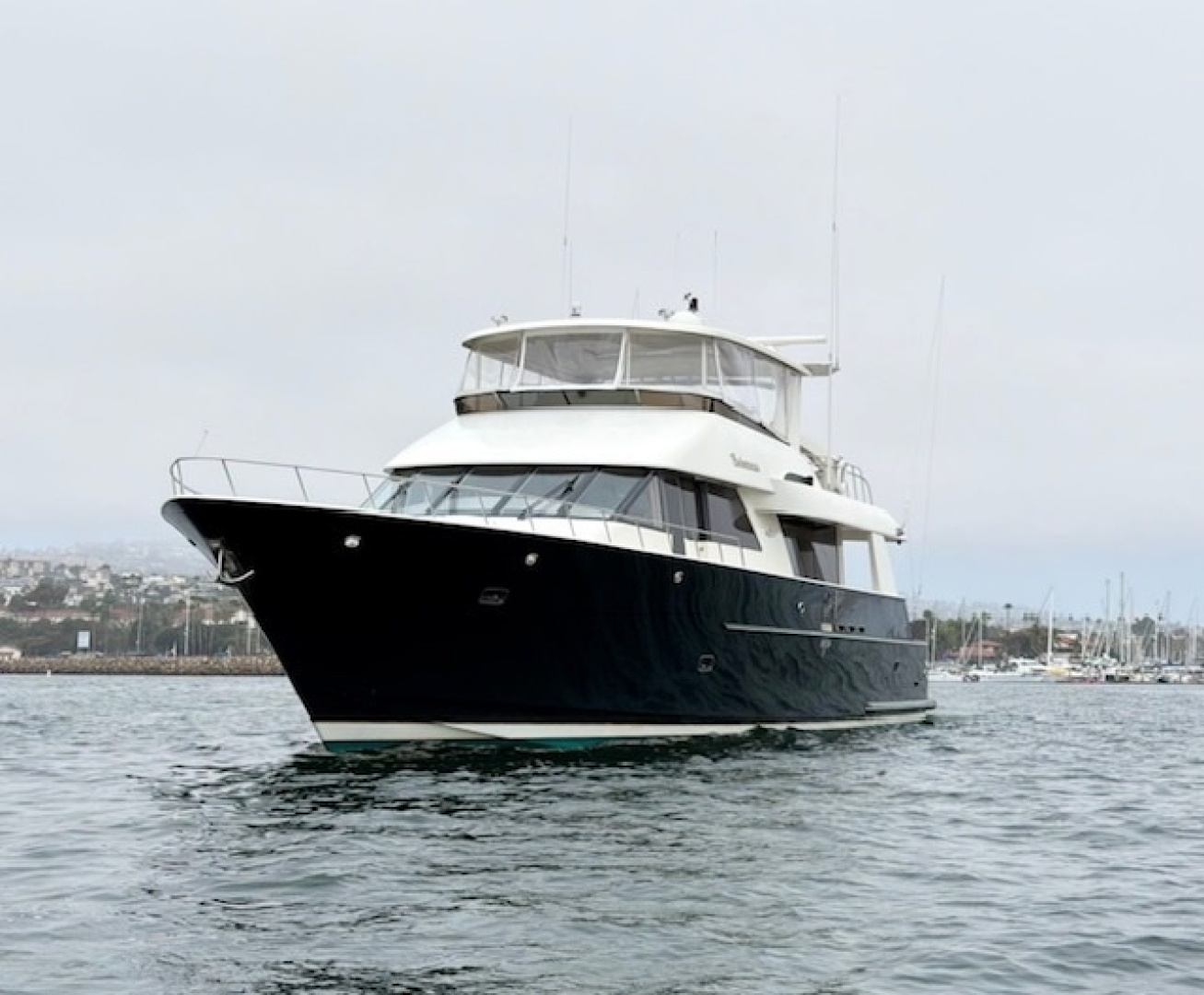

COLOSSEUM was custom built for a knowledgeable and experienced owner by North coast yachts and delivered 2001. The unique design provides larger staterooms and heads without adding to the length of the vessel. Created by naval architect Jack Sarin and exterior designer Paul Frederickson. With sleek lines and high freeboard make for a comfortable and modern looking yacht. Features include walk-around side decks while a covered aft deck with seating offers an ideal spot for Al fresca entertaining and dining. Another excellent feature is the expansive flybridge and boat deck. Accommodations for eight guests in four cabins consisting of a master suite amidships, A VIP suite, a double to starboard and a upper/lower twin to port, all with full ensuite facilities.

Crew quarters aft of engine room with twin berths, head/shower, utility area. Walk-around side decks, bow thruster can be

owner operated with ease. Twin Caterpillar 3412E 1400 HP main engines provide a top speed of 22knots or economy

10 knots.

GENERAL ARRANGEMENTS:

Access the Main salon from the aft deck through a sliding tinted Stainless steel & glass door. Forward of the main salon on the starboard side is a day head with the galley opposite to portside and further forward the pilothouse. Semicircular stairs up to the flying bridge.

The interior arrangements on the lower deck provide (4) double cabins. Crew quarters are separate and accessed from the aft cockpit. The Master stateroom is just forward of the engine room, which provides for maximum volume and allows for a king-size bed, ensuite head & shower. The (3) guest cabins each have a private head & shower. The VIP cabin is located forward with a Queen bed and hanging closet. Port & Starboard guest cabins. Throughout the yacht the decor is understated with light, subdued wall coverings that make for a spacious feeling. Carpeting is a conservative light sand color and textured. The woodwork joinery is rip cut natural oak. The California deck has two tables and bench seating for up to eight persons. Aft deck engine controls are located in an enclosed compartment on the port side. Port & starboard teak steps lead down to the cockpit. Stainless steel steps lead up to the flybridge and boat deck. Access to the engine room and crew quarters is from the cockpit thru a watertight door. A transom gate opens out onto the boarding platform. Boarding platform has removeable stainless steel loop rails. All aft decks are teak overlayed. There are walk-around side decks with non-skid surfaces and high bulwarks for easy handling of lines. The flybridge has a complete navigation station, two Stidd hem chairs, P&S settee with tables. BBQ grille, wet bar, refrigerator, ice maker. Pipe Welders hard top with a hydraulic opening sunroof & Easy2CY (4) sided enclosure. Aft of the bridge is the boat deck that can accommodate a 15' tender and space for additional water toys.

CONSTRUCTION:

• Hand laminated with Vinylester infused biaxial knitted fiberglass
• Female molded component parts with painted linear polyurethane finish
• Solid FRP keel and hull penetrations
• Linear PVC cored composite hull
• Linear Polymer foam cored composite house, decks & balsa bulkheads
• Bottom sanded, painted with 2 coats primer, 2 coats epoxy and 2 coats of anti-fouling paint

• MAIN DECK ARRANGEMENT:

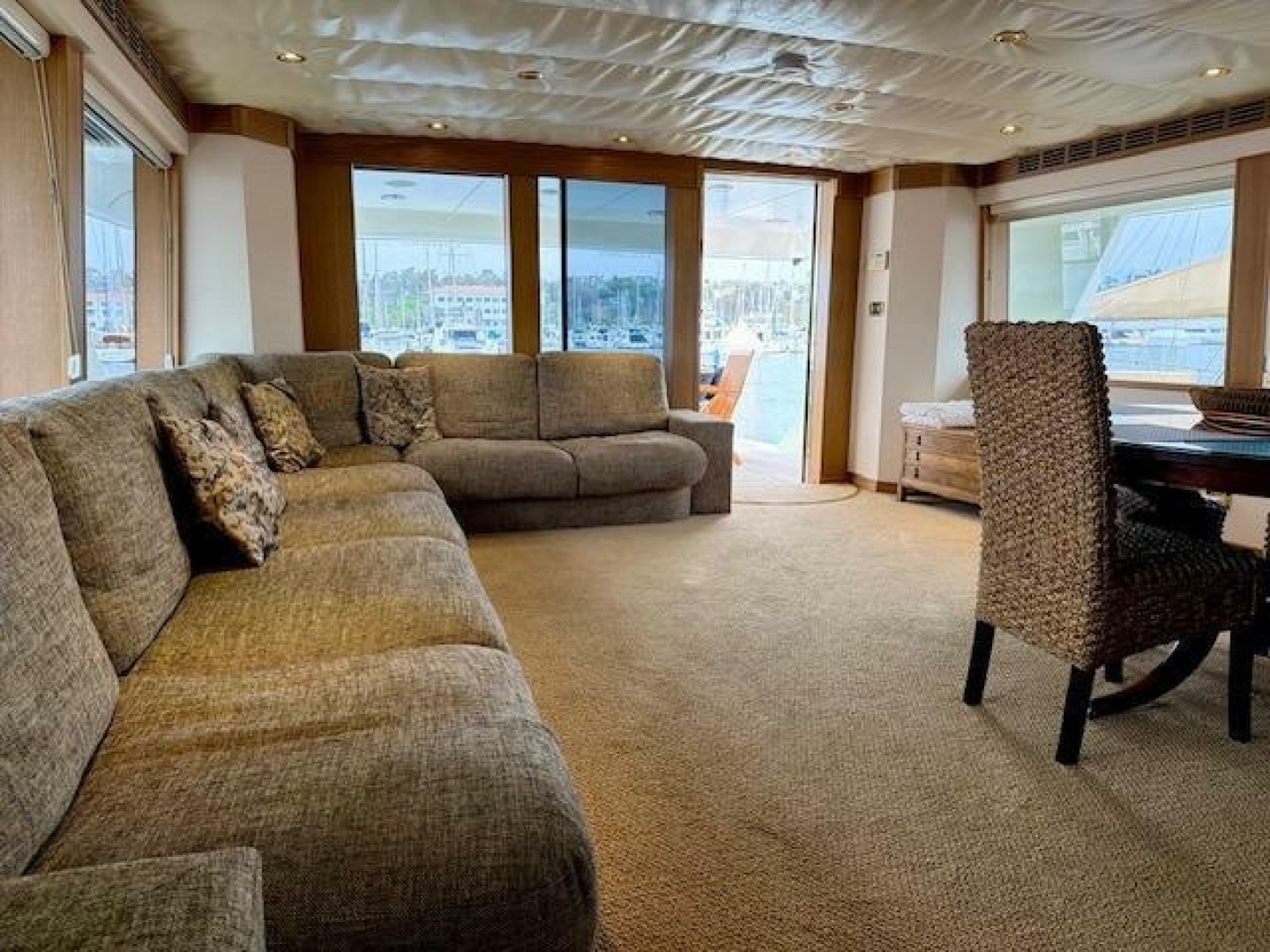

• The main salon is accessed from the aft deck sliding tinted glass door
• Full beam tinted glass panel aft of the salon
• High-quality sand color wool carpet throughout the vessel
• Custom made extended sofa along the starboard side of the salon
• Custom expandable wood dining table for 8 persons
• Interior woodwork is rift cut oak
• Custom cabinetry in the forward salon houses 42" Sony TV monitor & other entertainment systems
• Counter tops are marble
• Vinyl overhead with recessed lighting
• Wet bar, refrigerator icemaker, bronze sink and pass thru to the galley

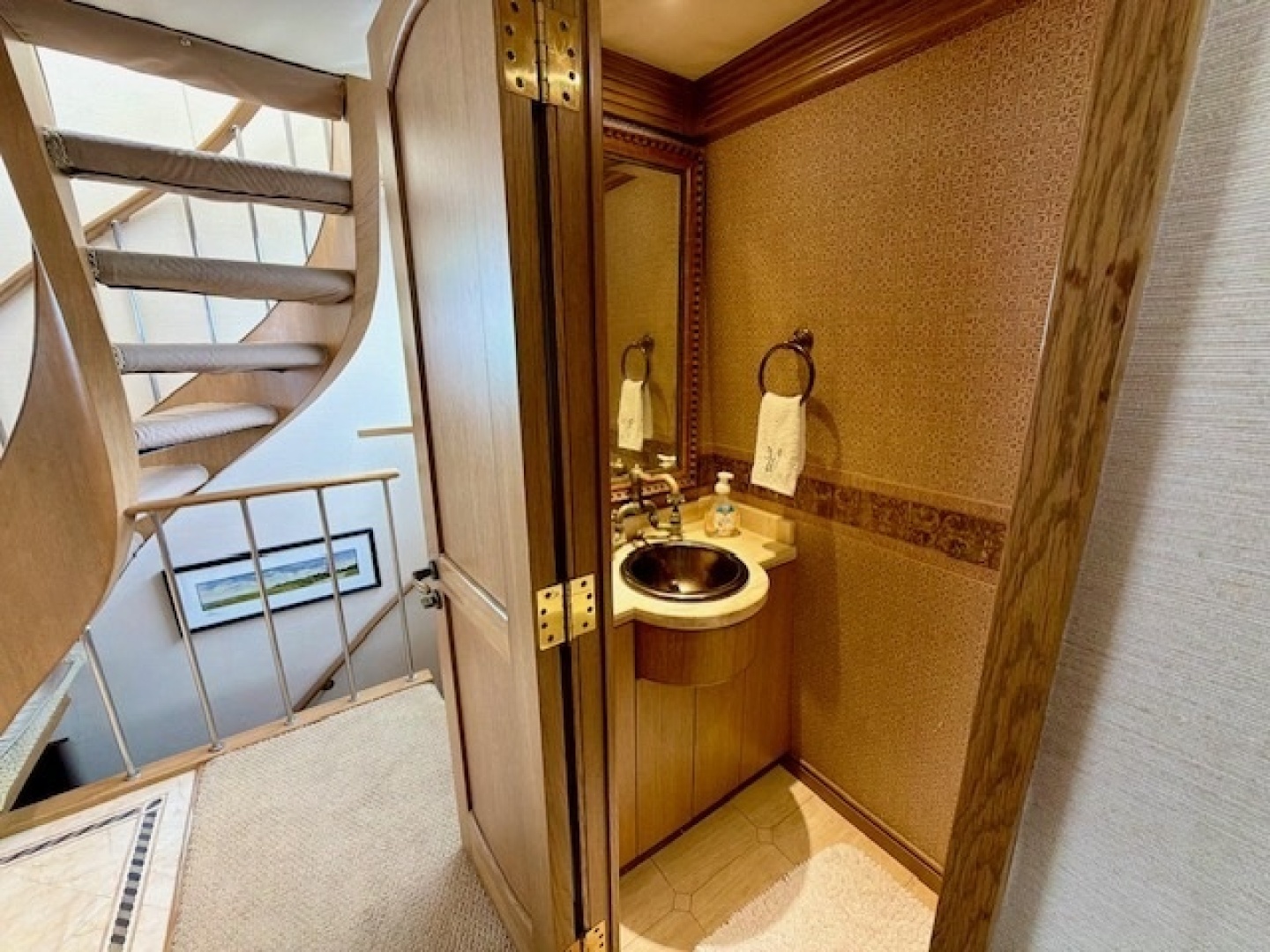

• Forward of the salon to starboard is a day head

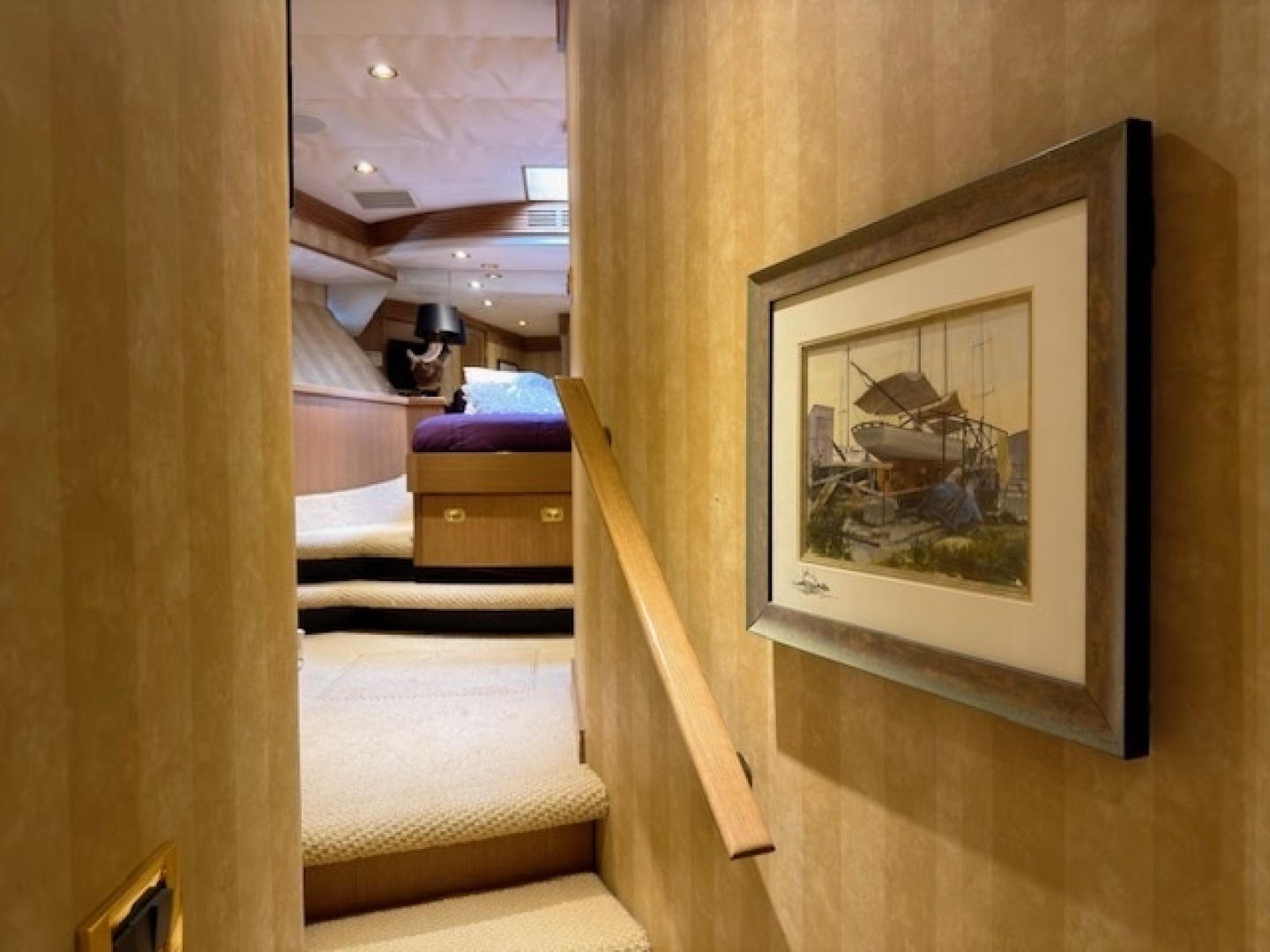

The lower deck accommodations are accessed by way of steps down from the galley area. At the bottom of the stairway is a center line companion way with a laundry cabinet with a stacked Asko washer/dryer. Master Stateroom is aft. Port/Starboard guest cabins and all the way forward is the VIP guest stateroom.

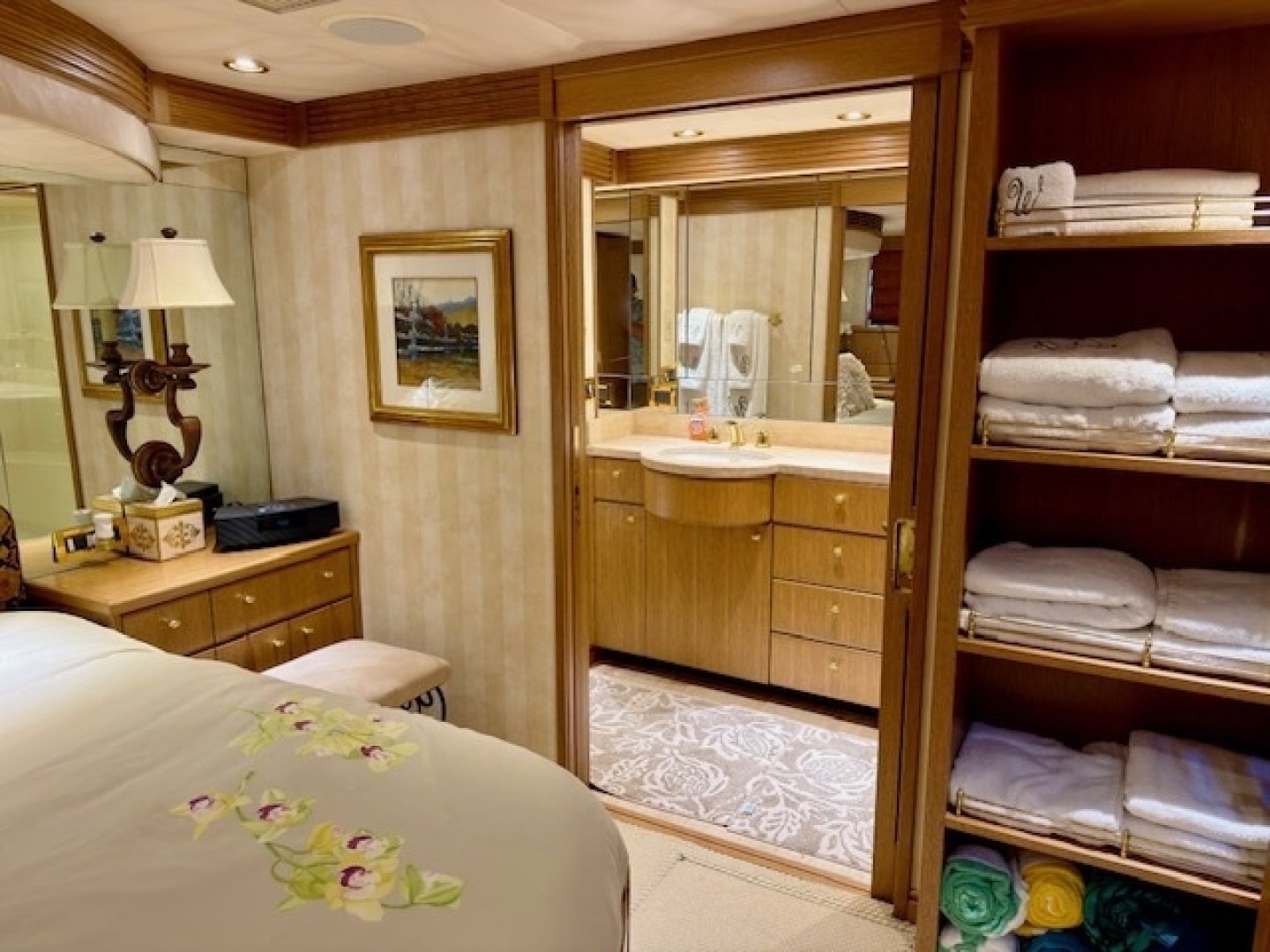

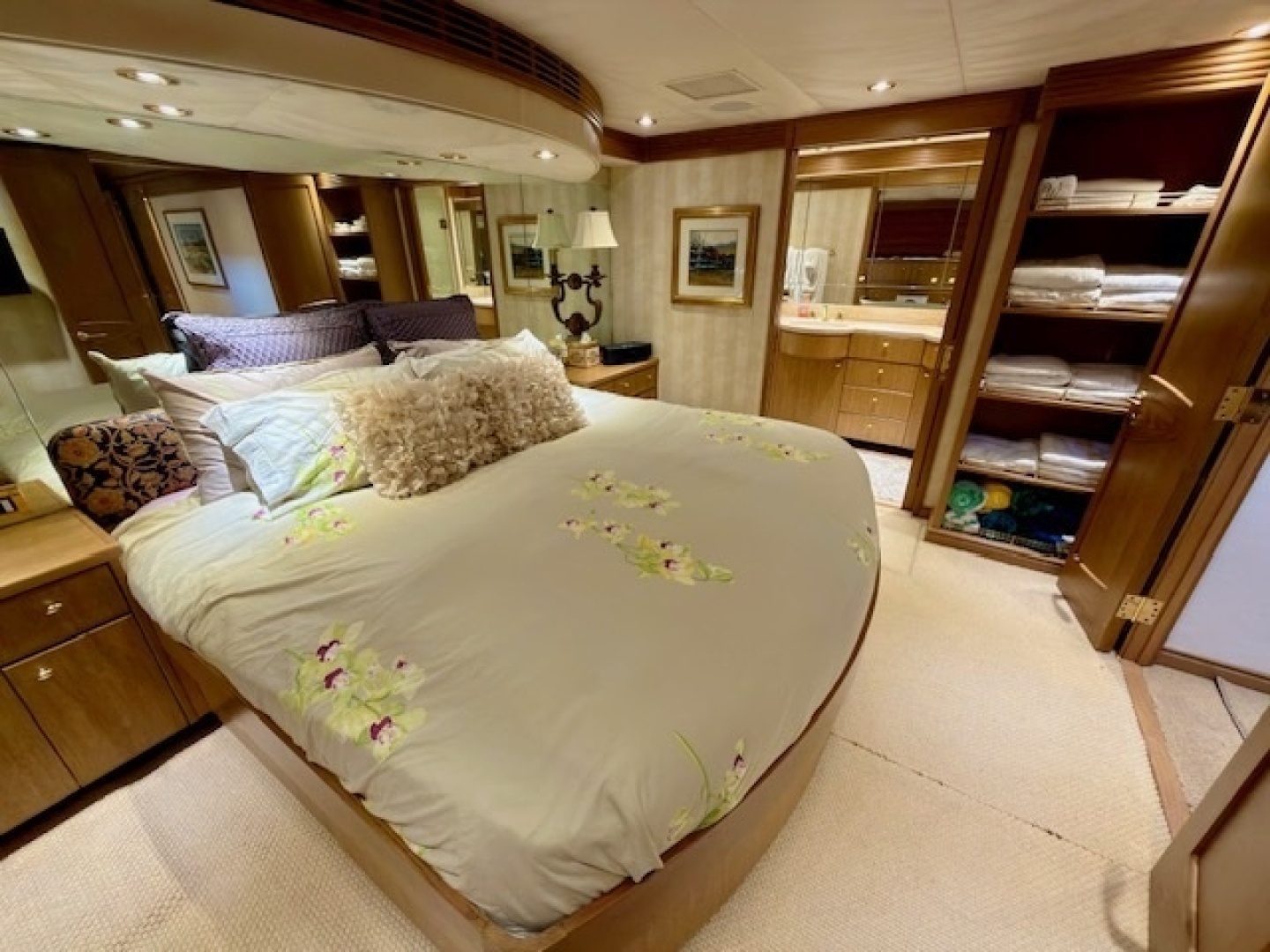

MASTER STATEROOM:

• Full beam stateroom with a centerline king size bed w/custom fabrics
• Under bed drawers
• Double wood passage door
• Flat screen TV, Bose AM/FM radio
• Built-in bookcase
• Walk-in Cedar lined closet
• Seven drawer dressers to starboard
• Vinyl overhead with recessed lighting
• Port hole with mini blinds
• Head & shower with Marble flooring and vanity
• Headhunter toilet

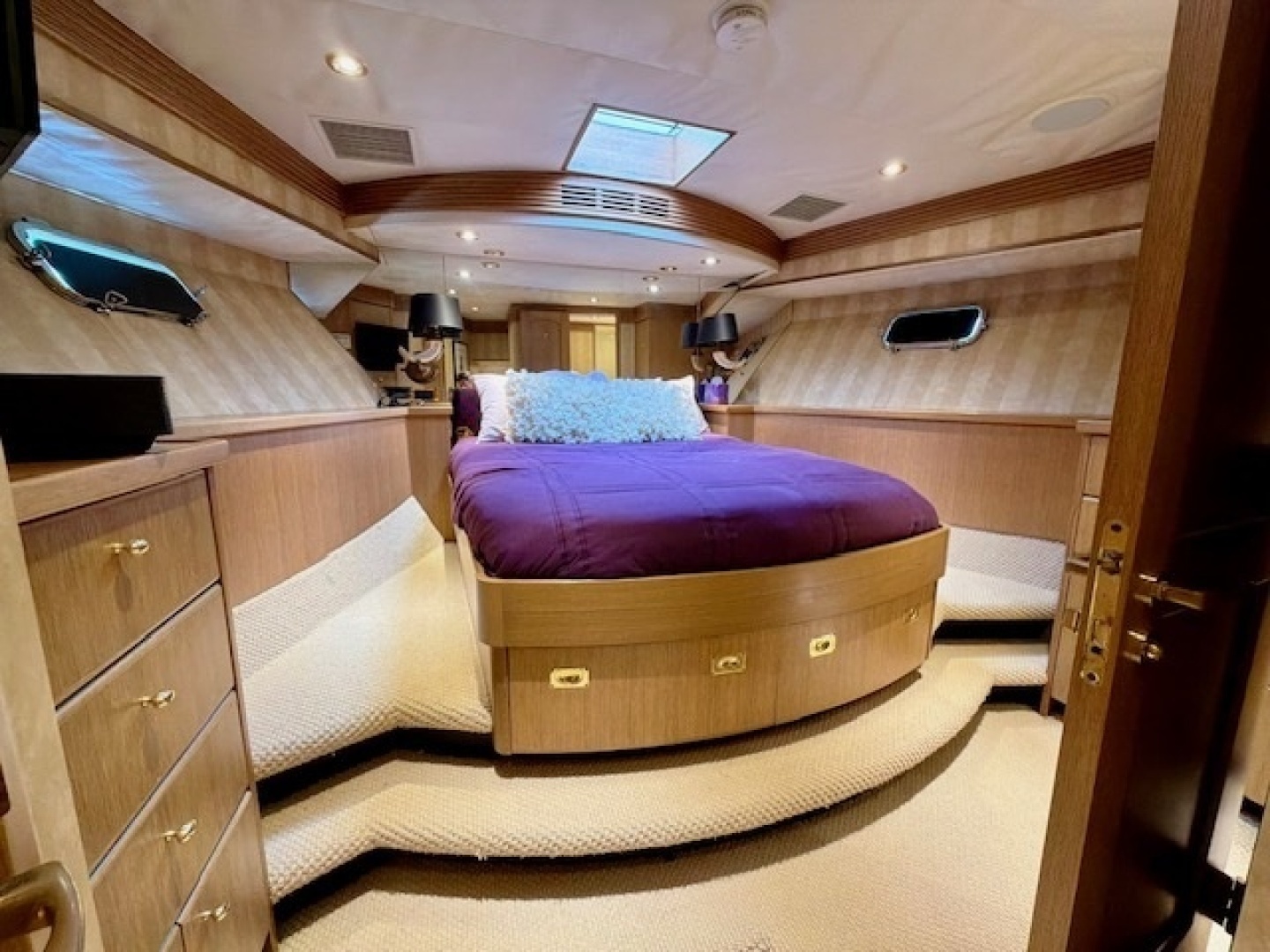

VIP STATEROOM:

• VIP stateroom is forward with an island Queen size bed
• Under berth drawers
• Step-in hanging wardrobe/cedar lined
• Overhead hatch (2) opening port holes with blackout covers
• Recessed lighting
• TV, Bose AM/FM radio
• Head & shower with marble vanity and flooring
• Headhunter toilet
• Wood passage door
• Built-in dresser port & Starboard

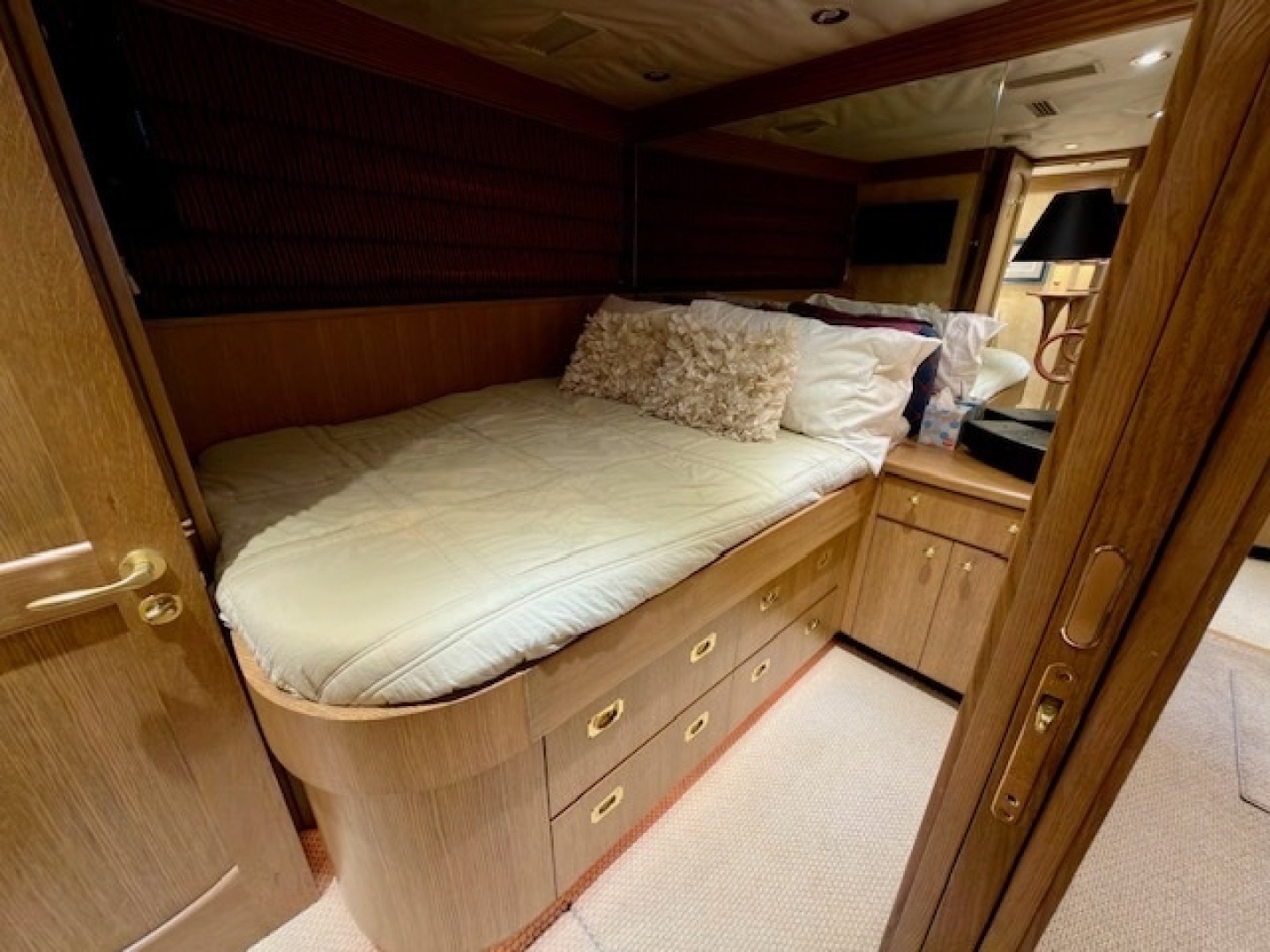

GUEST CABIN (Starboard)

• Offset double bed
• Flat screen TV, Bose AM/FM radio
• Head & shower
• Headhunter toilet
• Marble Vanity and flooring

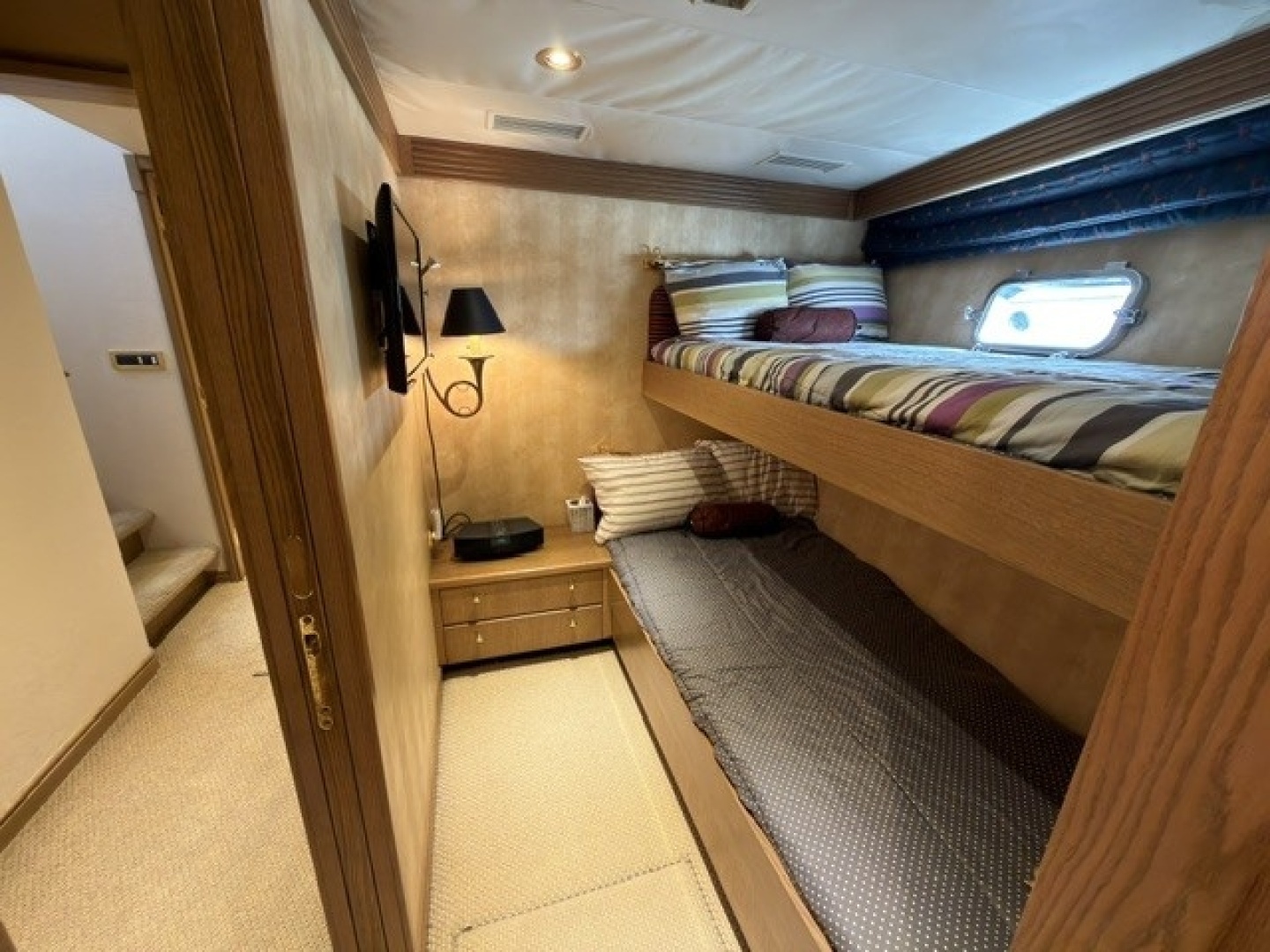

GUEST CABIN (PORT)

• Upper/Lower berths
• Flat screen TV, Bose AM/FM radio
• Head & shower
• Marble Vanity top and flooring
• Storage cabinets
• Asko stacked clothes washer/dryer in the companionway

CREW QUARTERS:

• Accessed from the cockpit thru a watertight door
• Adjacent to the engine room
• Single bed with optional Pullman berth
• Enclosed head and a stall shower with Grohe fixtures
• Vanity with porcelain sink
• Mirrored storage cabinets
• Fold out table
• Television, Am/FM radio
• Vinyl overhead wit recessed lighting
• Smoke detector
• Sony color television with video cassette
• Standard Horizon VHF radio, Cetrek wind speed /direction
• Sony Am/Fm/CD Player
• Port/Starboard port holes
• Utility room with a large work bench w/stainless steel top
• Tool storage drawers and cabinets
• Sink, Refrigerator, Freezer, Microwave oven
• White Formica counter tops and cabinetry
• Electrical control panel-- Generator controls
• Fire door to the engine room

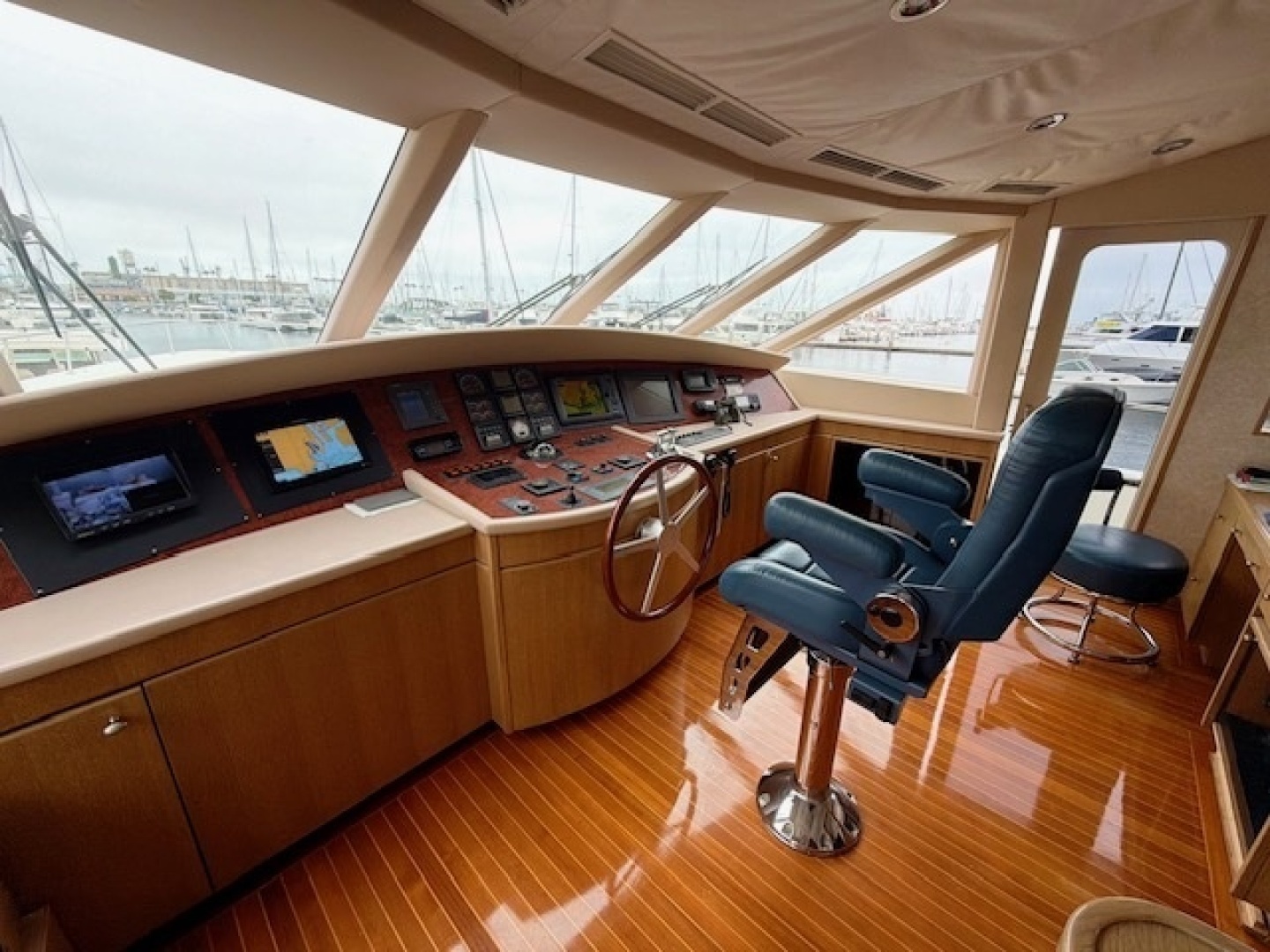

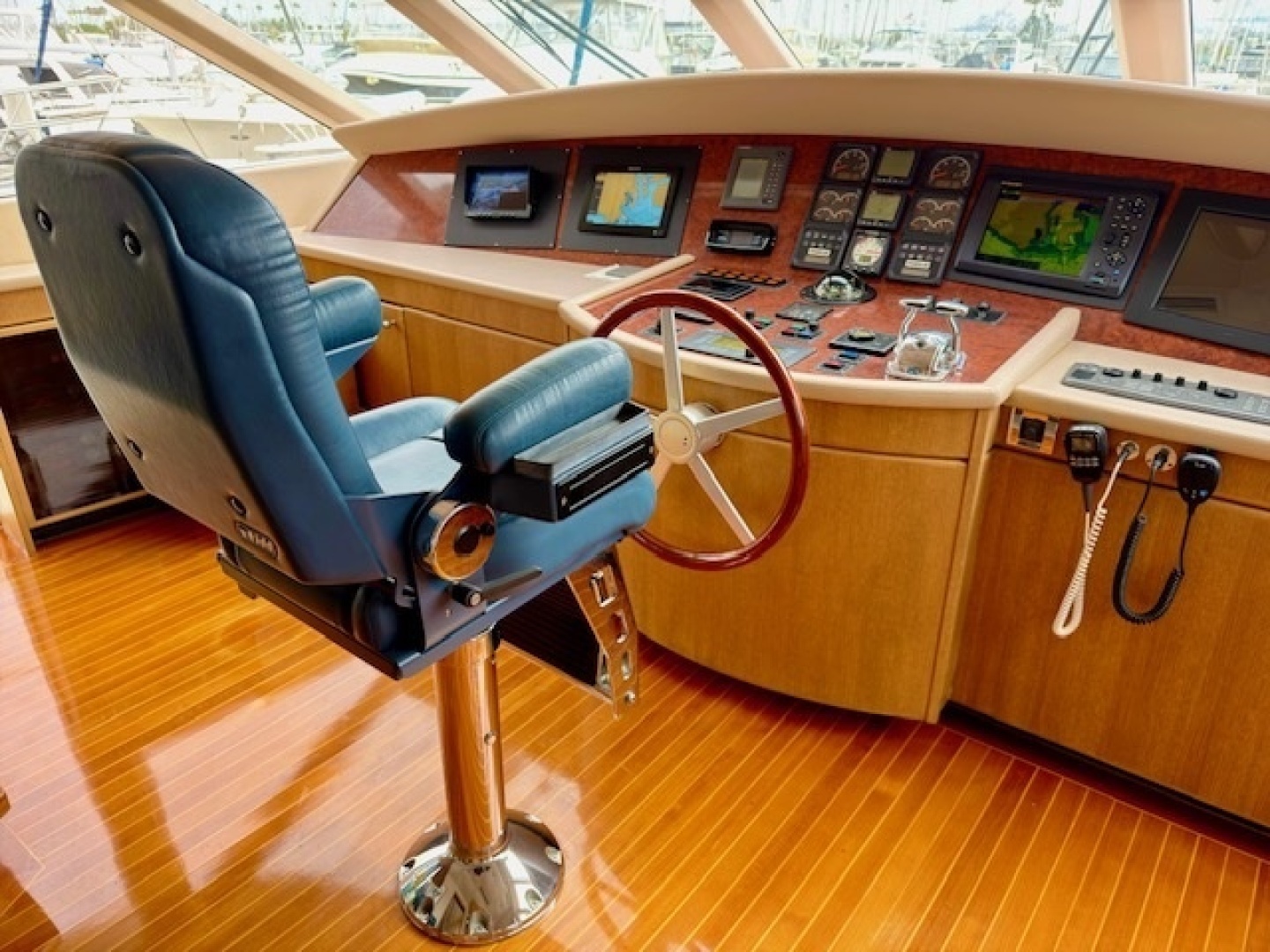

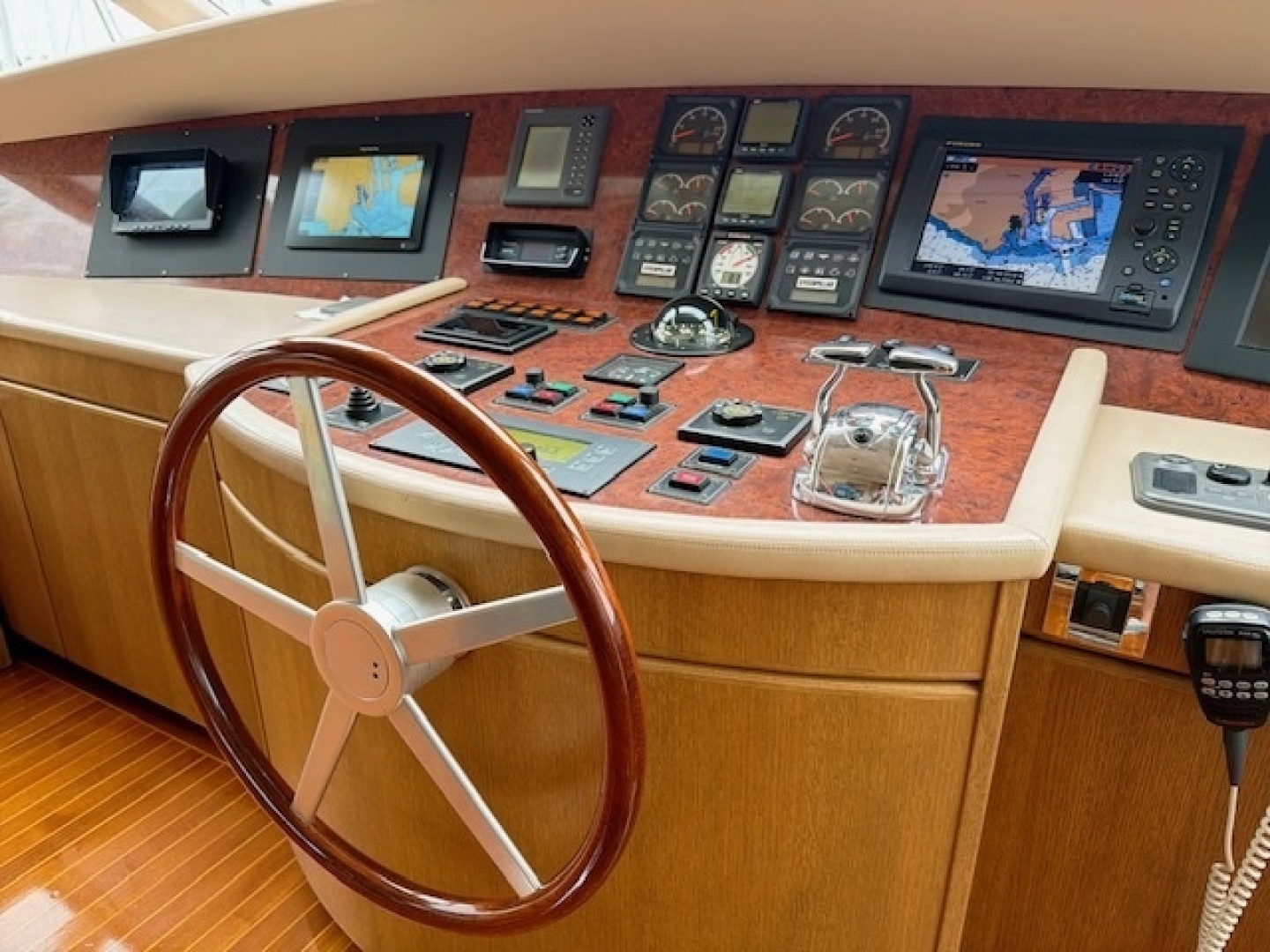

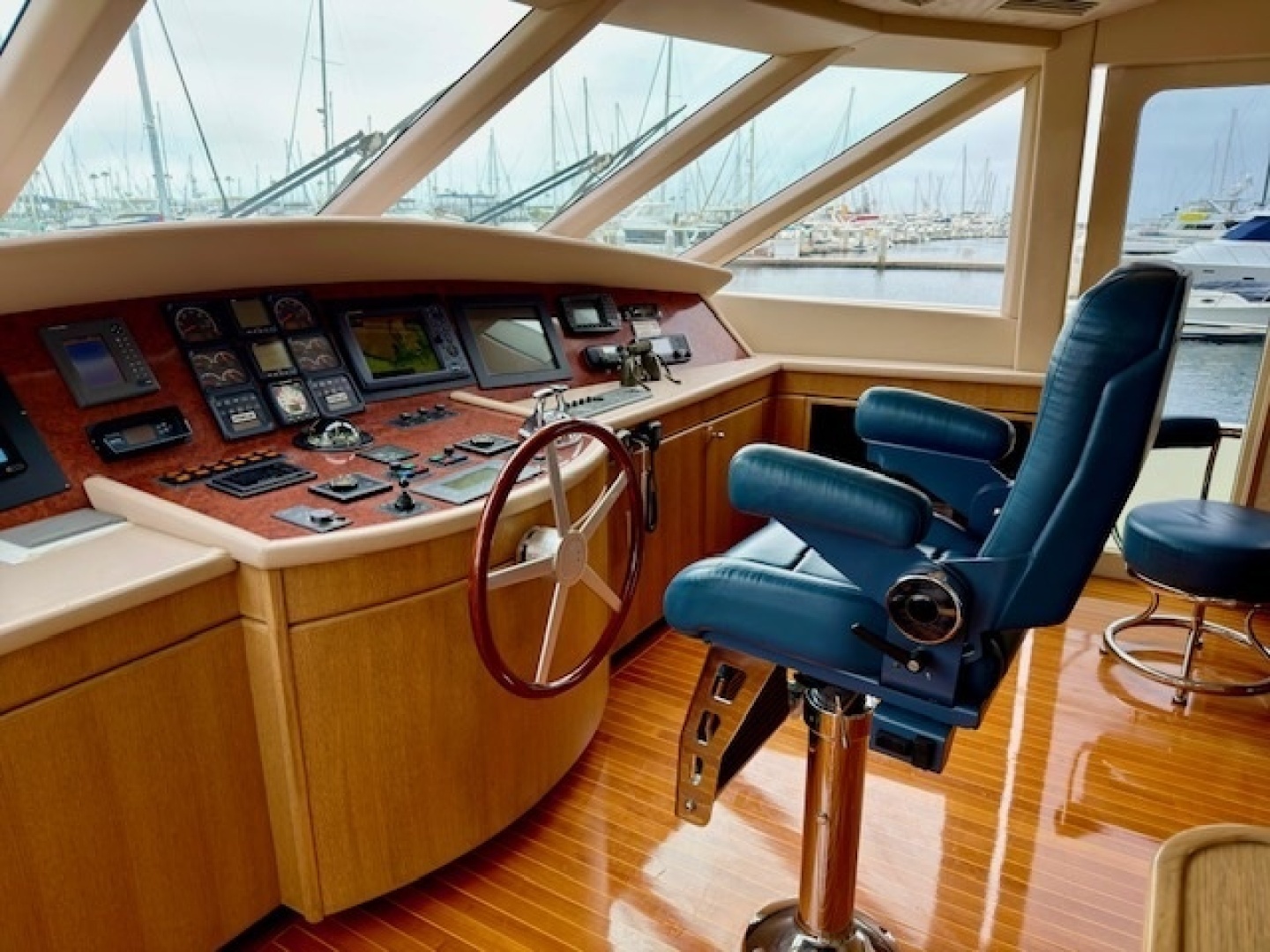

PILOTHOUSE:

• Centerline articulated Stidd helm chair
• Raised settee with table
• Teak & Holly flooring
• D.C. circuit panel/AC circuit panel Wing doors port/ Strbd
• Office desk/Nav table with computer & printer
• Mather Micro Commander electronic controls
• Caterpillar electronic gauge package
• Wind speed indicator
• Cetrek digital speed/depth
• Rudder angle indicator
• (2) ACR RCL 100 searchlight controls
• Engine room fire system alarm control panel
• Generator controls
• (2) Furuno Black box 10Kw 96-mile radars with 6' open array
• Northstar 961 GPS color chart plotter
• Northstar 961 remote chart plotter display
• Northstar 952 XDC DGPS color chart plotter
• Northstar 951 DGPS /B/W chart plotter
• (2) Furuno FCV 600 LCD color sounder
• (1) Brooks and Gatehouse depth sounder
• Data marine intl offshore depth sounder
• Anschutz pilot star D auto pilot
• (5) Standard Spectrum VG radios
• Panasonic PBX phone system/intercom
• NERA satellite Mii phone/fax
• GD cell analog cell phone with PBX interface
• Sea Tel 201 Satellite TV system
• Elbex quad switcher/controller
• Elbex camera with pan/tilt/zoom
• Elbex cameras (2) on the aft deck & engine room
• Weems & Plath clock & barometer

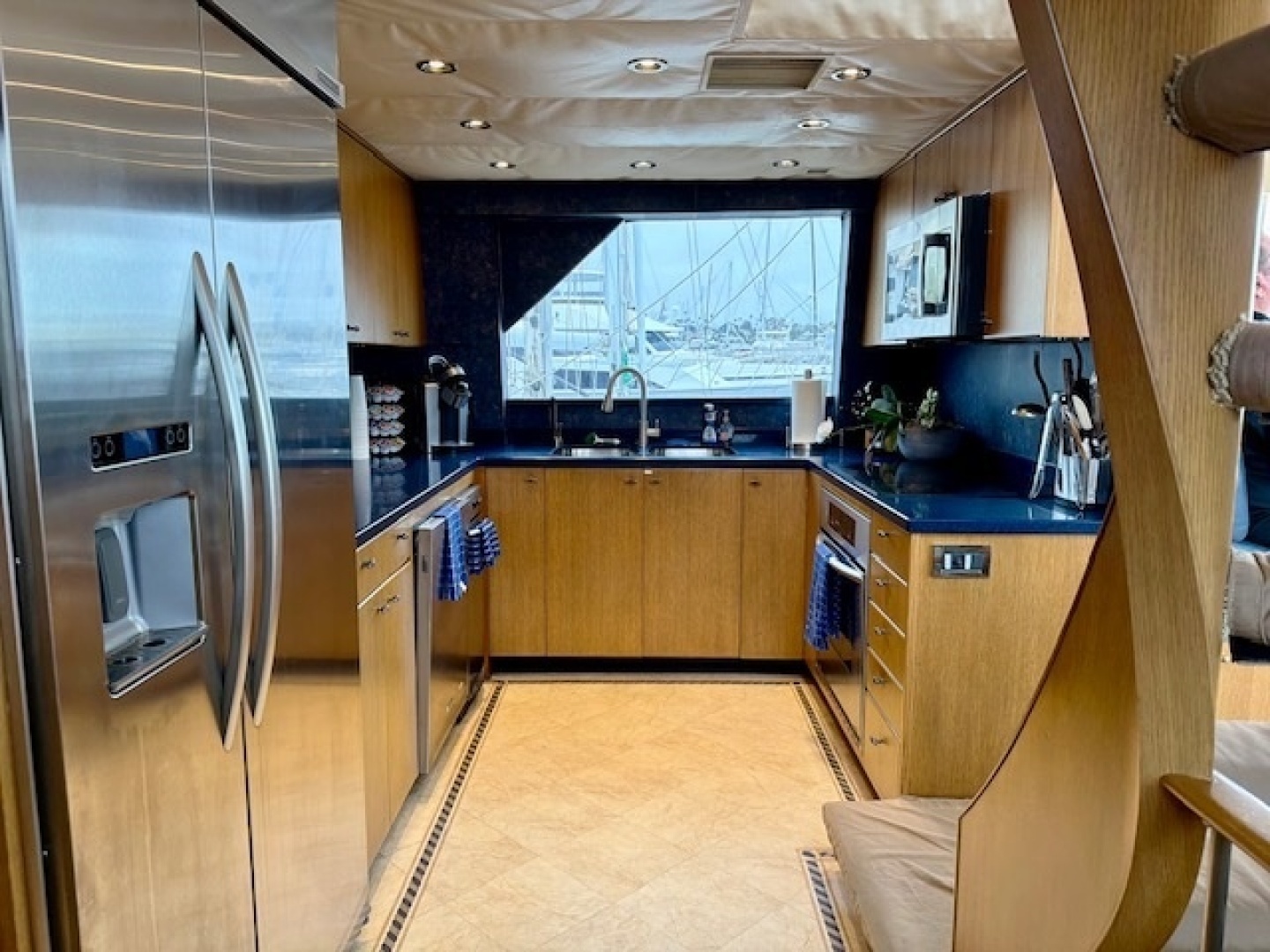

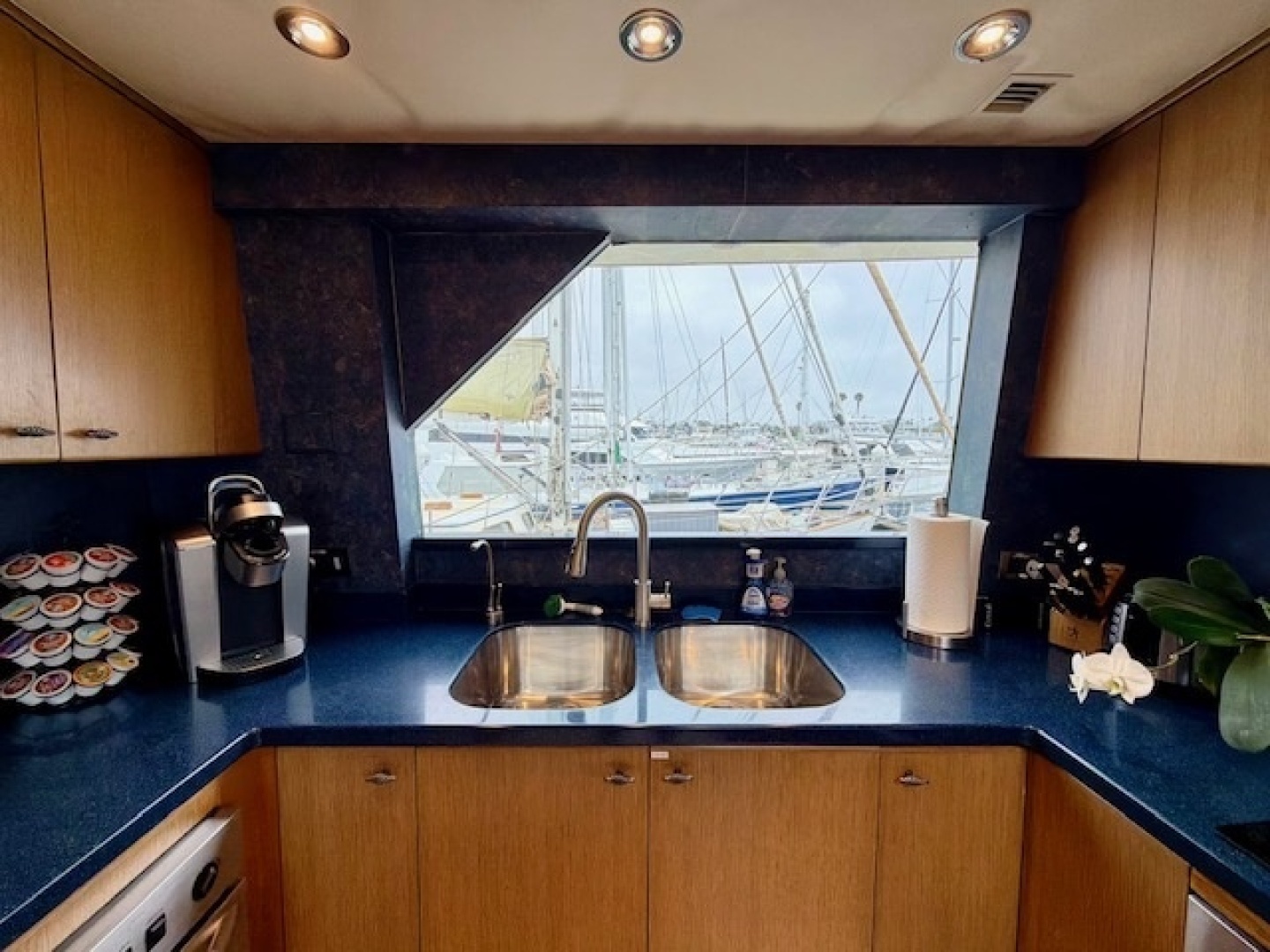

GALLEY:

• Galley is located just aft of the Pilothouse
• Stairways up to the flybridge and stairs down to the lower accommodations
• Cobalt blue Avonite counter tops
• Double sink with single lever faucet
• Side by side brushed stainless KitchenAid refrigerator/freezer
• Brushed stainless dishwasher undercounter
• Whirlpool convection oven
• Kitchen Aid Microwave oven
• Brushed stainless 4 burner ceramic stove top and oven
• Brushed stainless trash compactor
• Instant hot water dispenser
• Cabinetry above and below the counter tops
• Port/starboard large windows

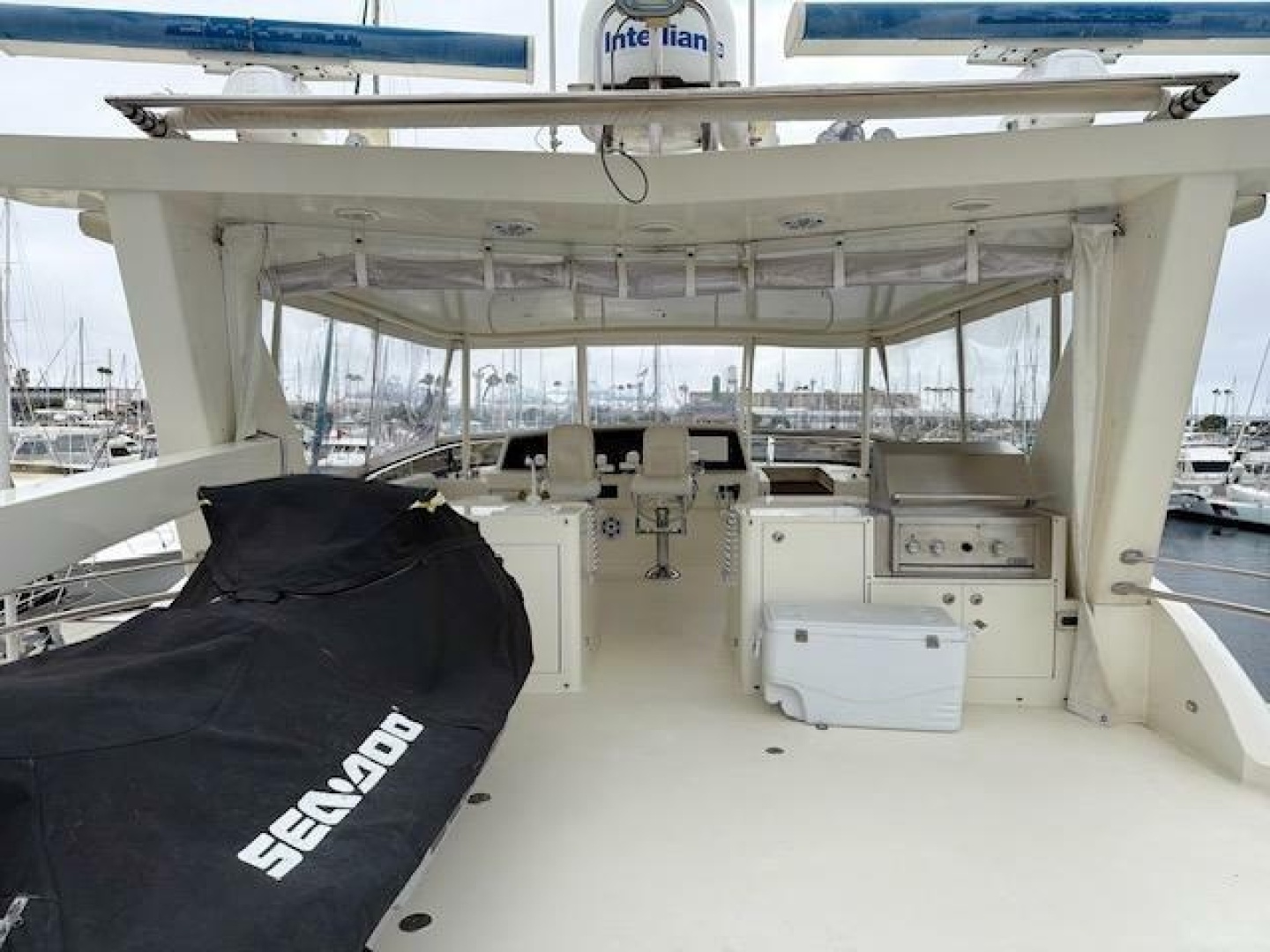

FLYING BRIDGE/BOAT DECK:

The flying bridge is enormous and incorporates a clean minimalistic design for the helm station and upholstered

seating spaces for guests to relax and enjoy the view.

• Custom Pipe welders hard top with a retractable sunroof
• Four-sided enclosure with EZ2CY DROPS
• Full stand-alone instrumentation on a 10' helm console
• Black Box flat screen Radar display
• Starboard Mather Micro-commander wing control
• Bow thruster control and tiller steering at all stations
• (2) Stidd helm chairs Port/Strbd curved settees with Corian dining tables
• Portside wet bar, refrigerator, ice maker, sink
• Starboard side LInx gas BBQ grille
• Boat deck aft of the bridge High-capacity Marquip hydraulic 2000 boat davit

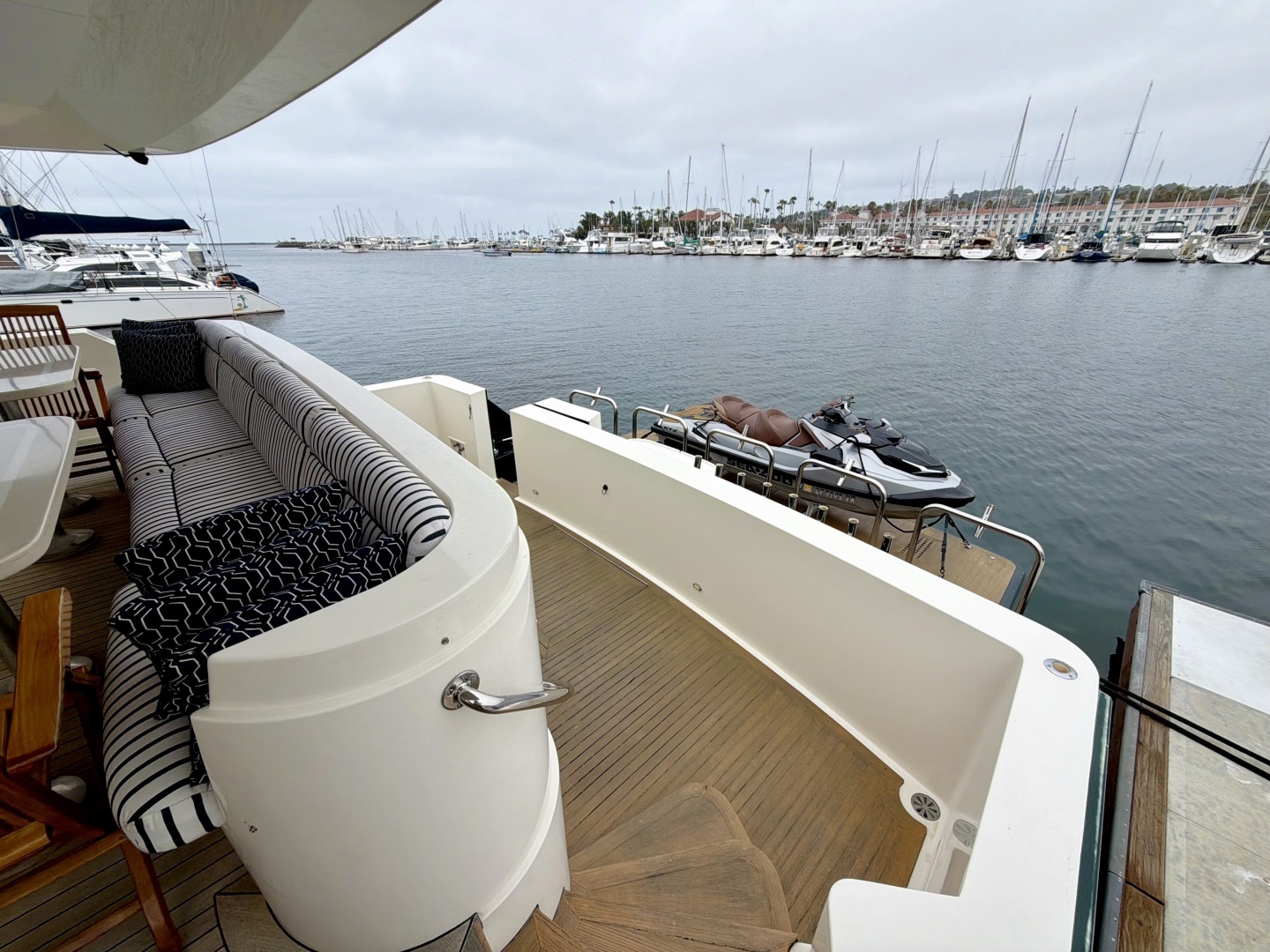

• Stainless steel steps down to the aft deck area

ELELCTRICAL SYSTEMS:

• (2) Northern Lights 32Kw generators (3200 hours) in sound shields
• (3) Lifeline Battery chargers
• (4) 12V storage batteries in covered battery boxes between the main engines
• District sub panels
• Master electrical panel in aft engine room and pilothouse
• 12/24v lighting
• 120/240Vac single phase 60hz
• Fire alarm with audio and visual display
• (2) 100' shore power cables with Glendinning cable winders
• Additional power cables and adapters
• Charles power boost transformer
• 24 volt 65-amp alternators (main engines)
• 12V, 40-amp alternators (Aux Generators)
• Isolation transformer
• AC lighting system
• DC navigation lights
• DC emergency passage lighting
• Telephone and cable TV hookup
• Ships system alarm panel in pilothouse

FITTINGS & EQUIPMENT:

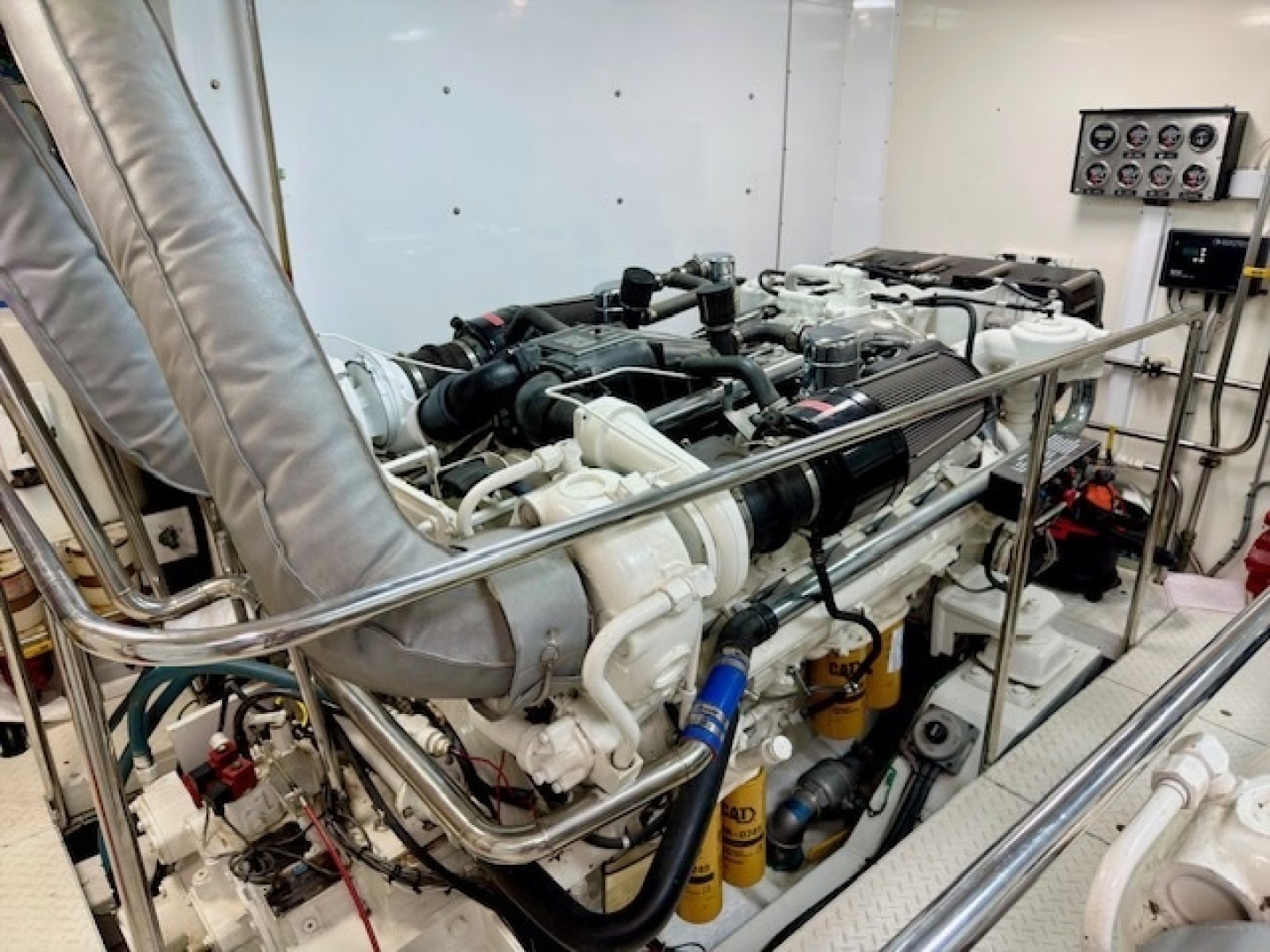

• (2) Caterpillar 3412E 1400 Hp main engines (3200 hrs approx)
• (2) Northernlight 32Kw auxiliary generators (3200 hrs approx)
• All stainless-steel deck hardware
• Oval stainless steel railings
• Stainless steel rub rails
• Bruce 50kg anchor with 300' galvanized 1/2" chain
• (1) Spare Bruce anchor
• Maxwell 3500 anchor windlass
• (2) ACR remote controlled searchlight
• Hastar bow thruster
• Sidepower Stabilizers (underway & at rest) 2019
• MarQuipt 2000 lb tender davit
• Flag staff
• Mooring lines
• Six fenders, Polyfoam 24"X57"
• Dry chemical fire extinguishers
• 44lb Halon 131 fixed fire system in the engine room
• Viking 8-person life raft
• (2) 24" life rings
• Fresh & salt water washdown
• Life jackets-life rings-flares
• Foredeck sun pads with cover
• Fog bell
• SatFind 406 EPIRB
• Racor filters Mains & Generators
• Nibral 38"X39" 5 bladed props
• 3-1/2" Stainless steel prop shafts
• Single arm struts
• (2) 1100-gallon aluminum fuel tanks P/S in engine room
• (2) 400-gallon aluminum fuel tanks P.S Lazarette
• (1) 400-gallon Fiberglass freshwater tank
• 40-gallon water heater
• Fiberglass decks with molded nonskid pattern
• Courtesy deck lighting
• Aft deck stereo speakers
• Remote cameras aft deck
• Aft deck gasoline tank with fill hose
• Air compressor
• Stainless steel mooring cleat

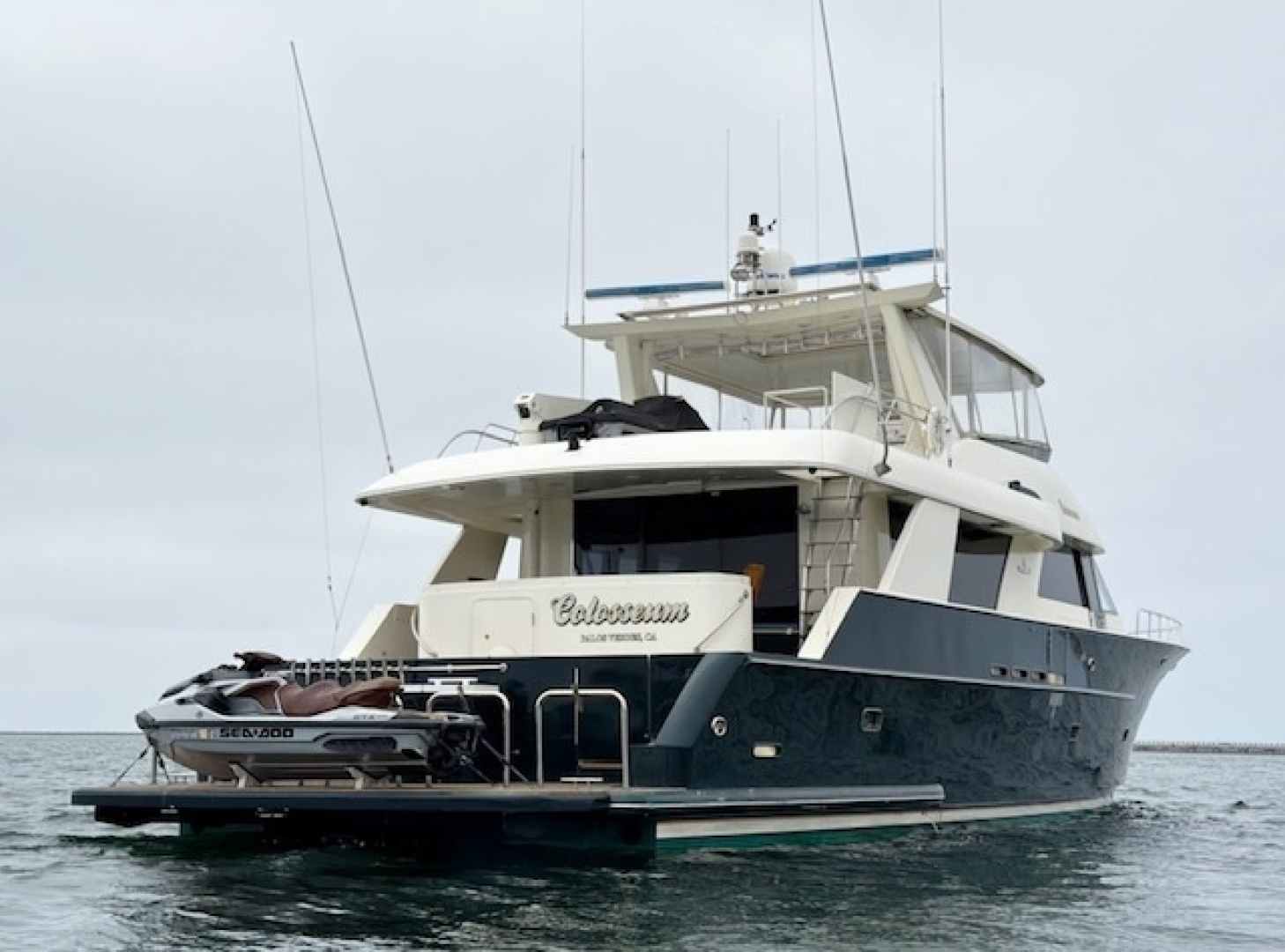

• Lift on transom for water toys
• Stainless steel loop rails on the boarding platform
• Stainless steel swim ladder
• Stainless steel steps up to the flybridge from aft deck
• Electric automatic bilge pumps
• Pompanette tide ride boarding steps

BROKER COMMENTS:

This 84' North Coast cockpit motor yacht exudes an air of quality and refinement. The four-stateroom accommodation arrangement with particularly sumptuous owner's and VIP guest staterooms, are tastefully furnished with Clean and uncluttered design and finished to superb standards by the best craftsmen.

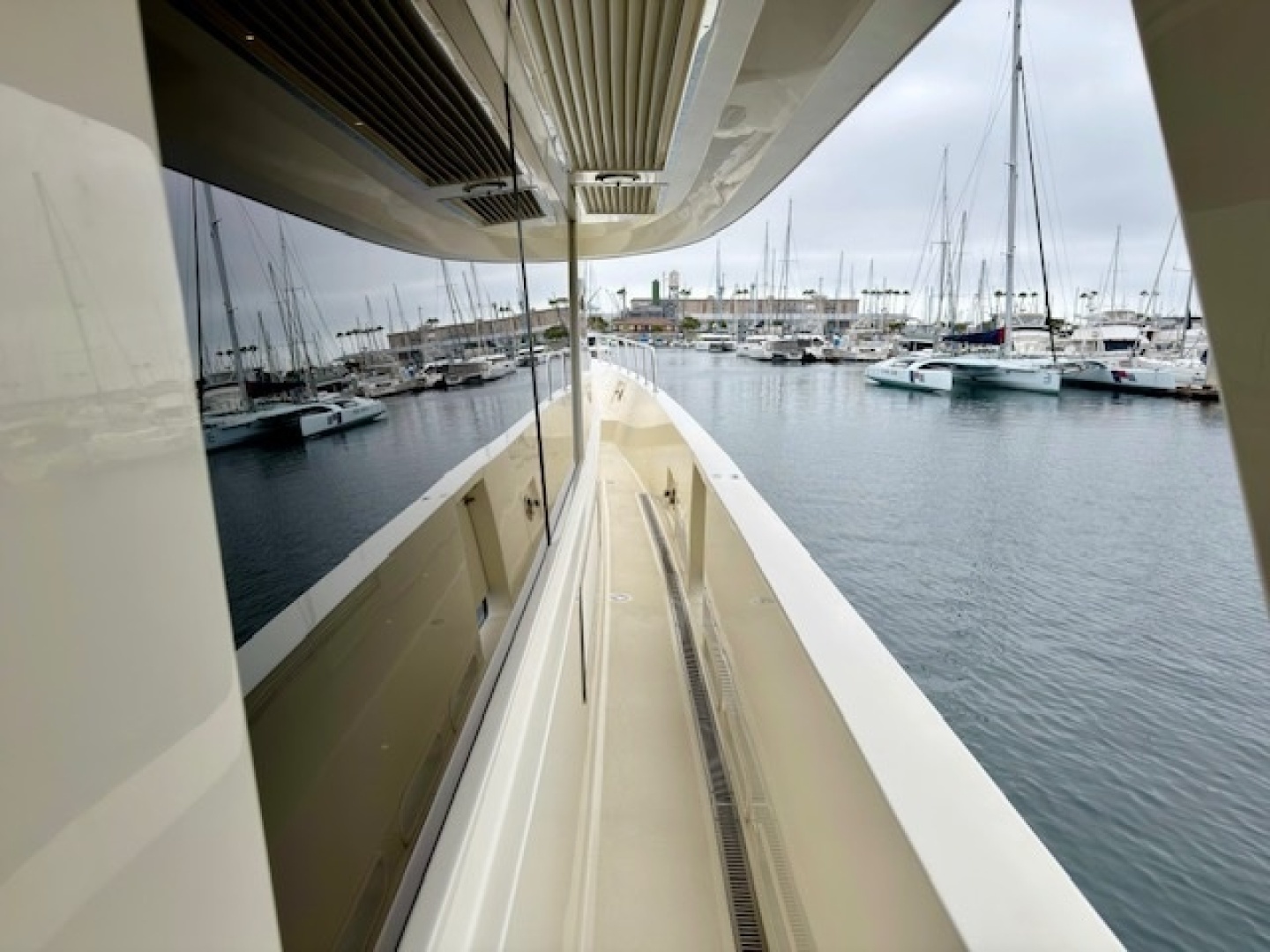

There are some subtle changes from the standard 82' model. The bow was modified to make it appear more traditional, removing the pulpit that gave the 82 a distinctive look. Unobtrusive polished stainless-steel drains that run nearly the full length of the side decks replace the multiple scuppers. There is a large hatch in the cockpit to provide access to a lazarette large enough to store all sorts of boat related gear. The crew is treated to more space on the 84' in comparison to the 82. Located aft and to starboard, the crew cabin has a double berth and a pullman if needed. Opposite, there's a combination mini galley, utility area with a refrigerator, freezer, microwave oven.

Recent circumstances make this an excellent opportunity to purchase an outstanding American built motor yacht that is priced realistically to sell. Colosseum has been used very sparingly and is ready for immediate use.

The seller is considering a larger yacht and will consider all reasonable offers.

EXCLUSIONS:

Exclusions are to include but not limited to, Owner and crew personal items and any other item aboard not specifically listed on broker specification brochure. A detailed list of exclusions will be provided upon request prior to sale.
